Basic Specs:
-
Power:
Input: AC100-240V,50Hz/60Hz
Output: DC12V,1000mA
2. Maximum nebulization rate:≥0.2mL/min

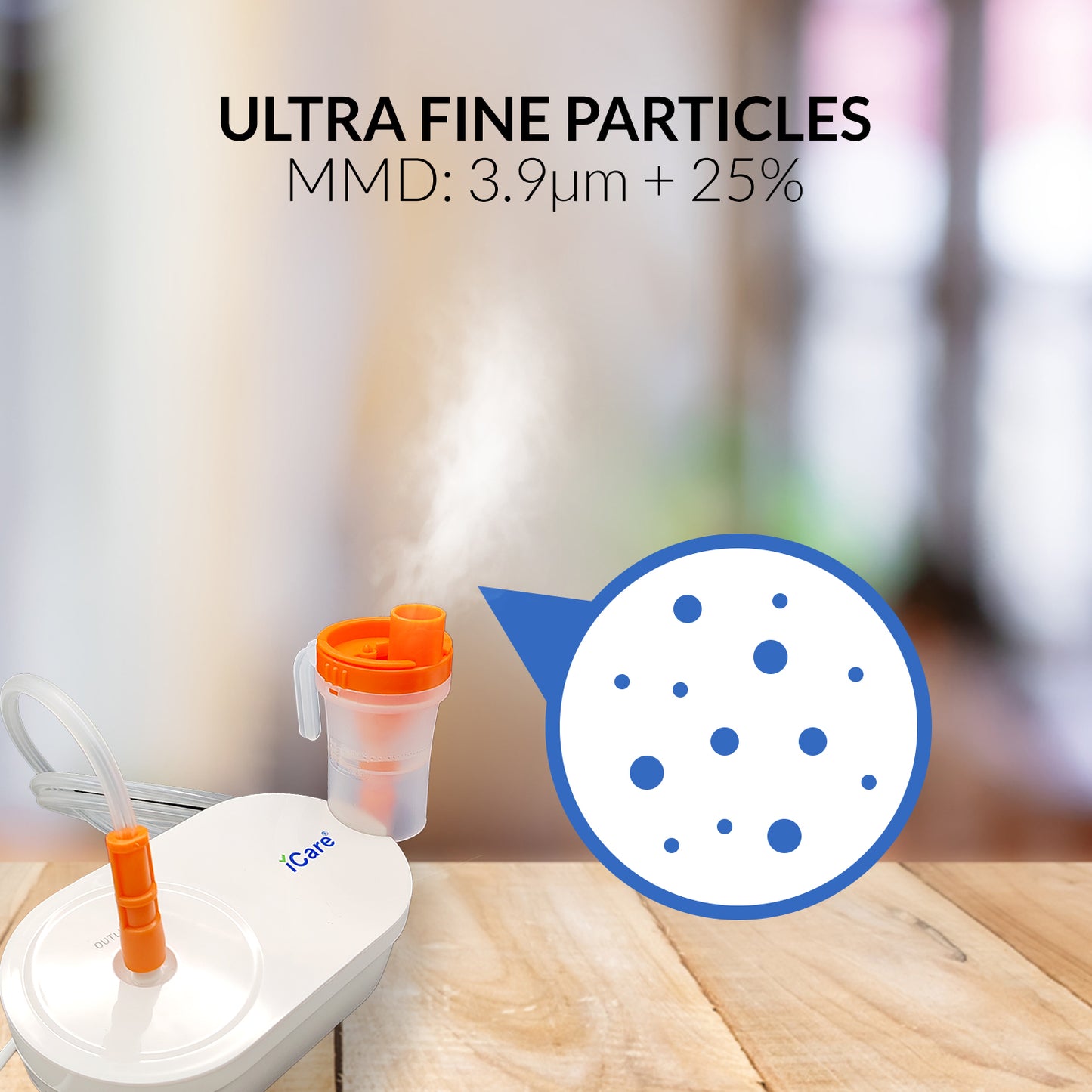

3. Mass median diameter(MMD): 3.9 μm± 25%Percent of MD < 5 μ m:> 65%※※
Test Condition: Temperature: 20, Relative humidity:53%,
Test distance: 10cm away from atomizing outlet,
Testsolution: 0.9% physiological saline.
(Test result changes withdifferent condition and solution.)
4. Maximum pressure of compression pump: ≥0.1MPa5.Free flow of compression pump: >3.5L/min
6. Noise: ≤60dB(A)
7. Net weight:about 220g(unit only)8.Size:Approx.14.5cm(l)x8cm(w)x5.6cm(h)
9.Taboo: None
10.Electrical safety requirements: Class Il equipment, Type BF applied part
11. Working system: intermittent operation -working for 20minutes with an interval of 40 minutes
12. Normal working conditions:
Ambient temperature:10℃~40℃
Relative humidity:30%~75%
Atmospheric pressure: 86kPa~106kPa
13. Transportation and storage environment conditions,
Ambient temperature:-40℃~+55℃
Relative humidity:10%~93%,no condensation
Atmospheric pressure:70kPa~106kPa
※Test conditions: The environmental temperature is 20℃ and the humidity is 53%. Atmosphere pressure 101.3 kPa. Test solution: 0.9% saline
(Change with test conditions and test solution)
Caution:
• If the storage temperature is below 5 ℃, apply the deviceonly when the temperature meets normal operatingconditions.
• Store this product in a well-ventilated room, and avoidviolent vibration in transportation.
Preparing the Nebulizer for Use:
1.Open the cap.
2. Add the correct amountof prescribed medication to the medication cup.
Caution:
• Consult with physicians when nebulizing medication.
• Pour the correct amount of medication into the medication cup and do not exceed the maximum mark.
• The scale on the medication cup is a reference. Please use the scale on your syringe or vial for accurate measurement of medication.
• After the medication is added to the medication cup, pleaseproperly place the cup and avoid the dumping of the cup andthe medication flowing outside.
3.Cover the cap and connect the mouthpiece or mask
4.Turn the power switch to the off position.
5. Plug the AC adapter with the main unit.
6. Plug the adapter into a power outlet.
Caution:
Make sure the AC adapter plug must be fully inserted into the power outlet when in use.
Do not plug or unplug the AC adapter into the electrical outletwith wet hands.
※ Use on holderPlease use the holder when temporarily placing medication cup.
How to use:
1.Turn the power switch to the on position
2. As the main unit starts, connect the air tube to the connector of the main unit and the medication cup respectively.
-
Connect one end to the main unit connector.
b) Connect the other end to the medication cup connector.
Caution:
Make sure the air tube is firmly connected to the main unitand the medication cup.
3. Hold the nebulizer kit for treatment.
Caution:
In nebulization, keep the mouthpiece in mouth and close yourmouth.
Do not tilt the nebulizer kit so the angle of the kit is greater than 45 degrees. Medication may flow into the mouth and the spraying may be ineffective.
lf there is anything unusual in using, please stop using it immediately.
In nebulization, check whether there is visible aerosol discharging from the medication cup.In the event of irregular spray, please immediately stop the treatment.
Be sure to wipe the face after usingnebulizer mask, and do not let the medication left in the face.
※ Rotating the cap can properly
4. After treatment, turn the power switch to the off position.
5.Disconnect the nebulizer kit from the air tube.
6.Check the air tube. No condensation or moisture should remain in the air tube.
7. Disconnect the air tube.
8. Unplug the adapter fromthe power outlet.
