Main Features:
Rechargeable
Light Indicator (Light changes depending on BP level)
Voice Broadcast
Cuff Size 22cm-36cm
Dual User Function
Average 3 Times Function
WHO BP Level Indicator
Excessive Motion Detection
Irregular Heartbeat Indicator
Time and Date Display
Automatic Shutdown
1 Year Warranty
Basic Specs:
Display Mode: LCD
Measurement Method: Oscillo metric method
Measuring range:
Pressure: (0-290)mmHg (0-38.66)kPa
Pulse rate: (40-180) beats/minute
Measurement Accuracy:
Pressure: ±3mmHg | ±0.4kPa
Pulse rate: ±5%
Cuff Circumference: 22cm-36cm
Normal Working Environment: +5°C~+40°C; 15%~80%RH; 80kPa~105kPa
Storage and transportation environment (after removing protective packaging):
(-20~+55)°C; ≤93%RH; 50kPa~106kPa
Memory groups: Two users with 99 results each
Voice: Optional
Automatic shutdown: Automatically shut down within 60 seconds without operation
Types of protection against electric shock: Internal power supply of Class II equipment
Degree of protection against electric shock: BF type applied part (applied part is only cuff)
Degree of protection against liquid ingress: IP21
Safety level in the environment of flammable anesthetic gas: Non-AP and APG devices
According to the disinfection and sterilization method: Surface disinfection
By operation mode: Continuous operation
Pressurization method: Intelligent control of air pump automatic pressurization
Quick Exhaust method: Intelligent control of air pump to quickly deflate
Power Supply: DC 3.7 V Lithium Battery
Accessories(parts) Life:
1. Lithium Battery – 5 years or 500 charge and discharge cycle, whichever comes first.
2. Packaging: More than 1 year.
The shelf life of instruction for use is 5 years.
Battery Life Cycle: The number of usable working cycles when fully charged is about 150 times.

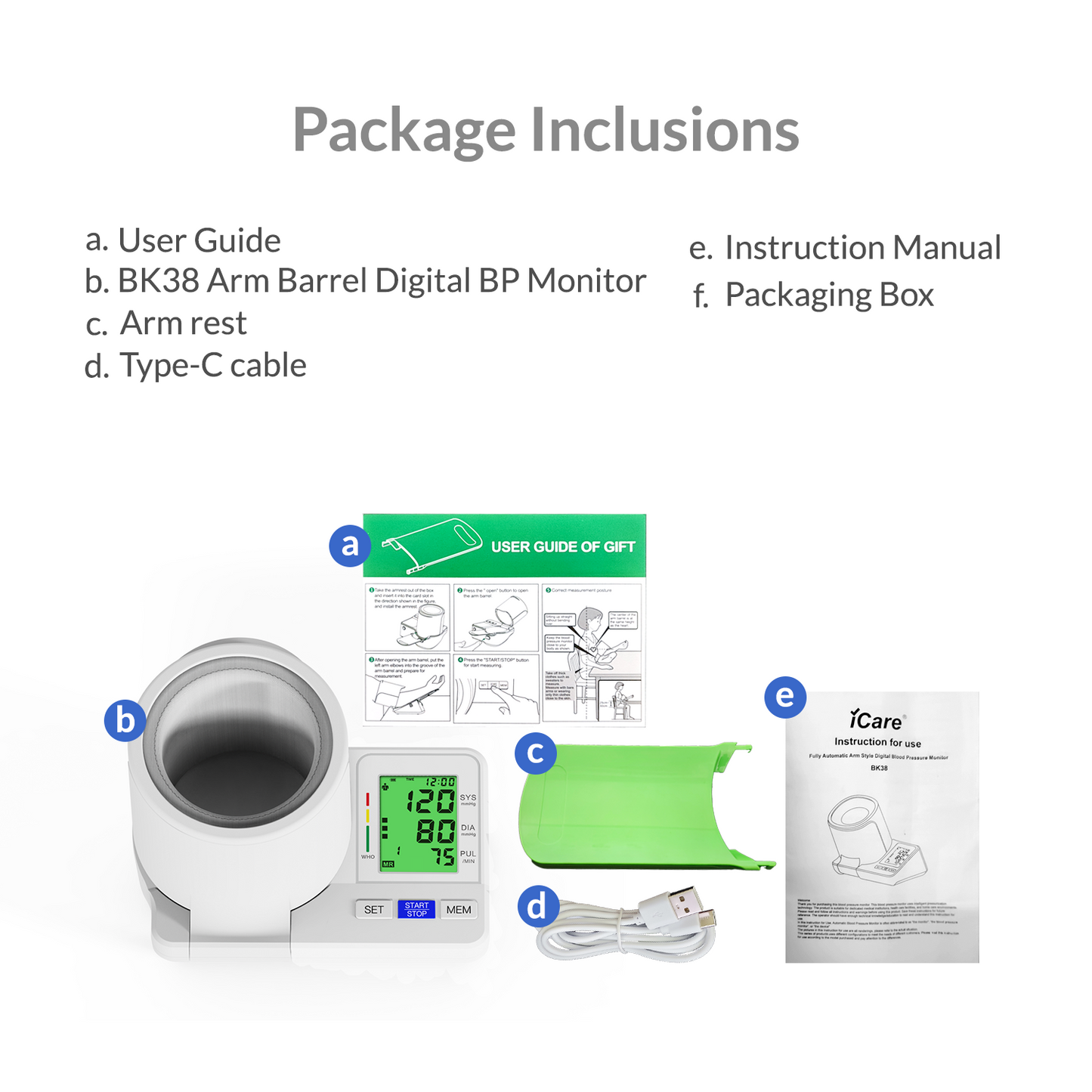

Standard Accessories: 1x BK38 Rechargeable Digital Blood Pressure Monitor, 1x Instruction Manual, 1x Type C Charging Cord, 1x Arm Rest, 1x User Guide
How to use:
• Press the cuff switch to allow the cuff to adjust angle.
• Roll up your sleeve and insert your left arm on the cuff barrel. Let your elbow rest on the groove and the arm rest.
• Sit properly and keep the cuff on the same level as your heart.
• Press the start stop button, the device will start inflating the cuff. Stay still, avoid talking and stay relaxed while waiting for the results.
• After a minute or less, your results will appear. The voice broadcast will also announce your result, and the screen will change its color depending on your results. Green for normal, yellow for mild hypertension, and red for hypertension.
• You can press the start/stop button to shutdown the device, otherwise, it will automatically shutdown after 60 seconds of inactivity.
