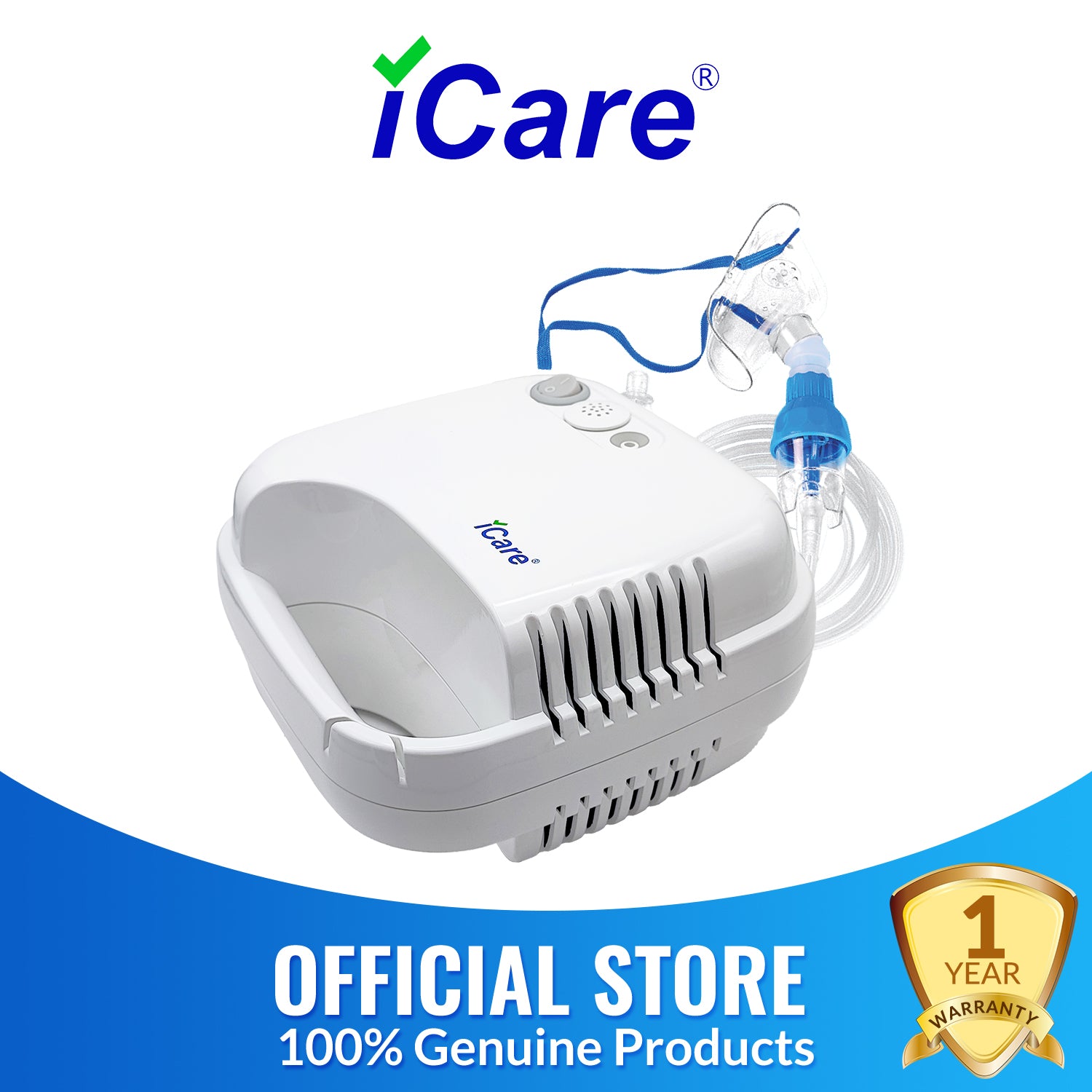

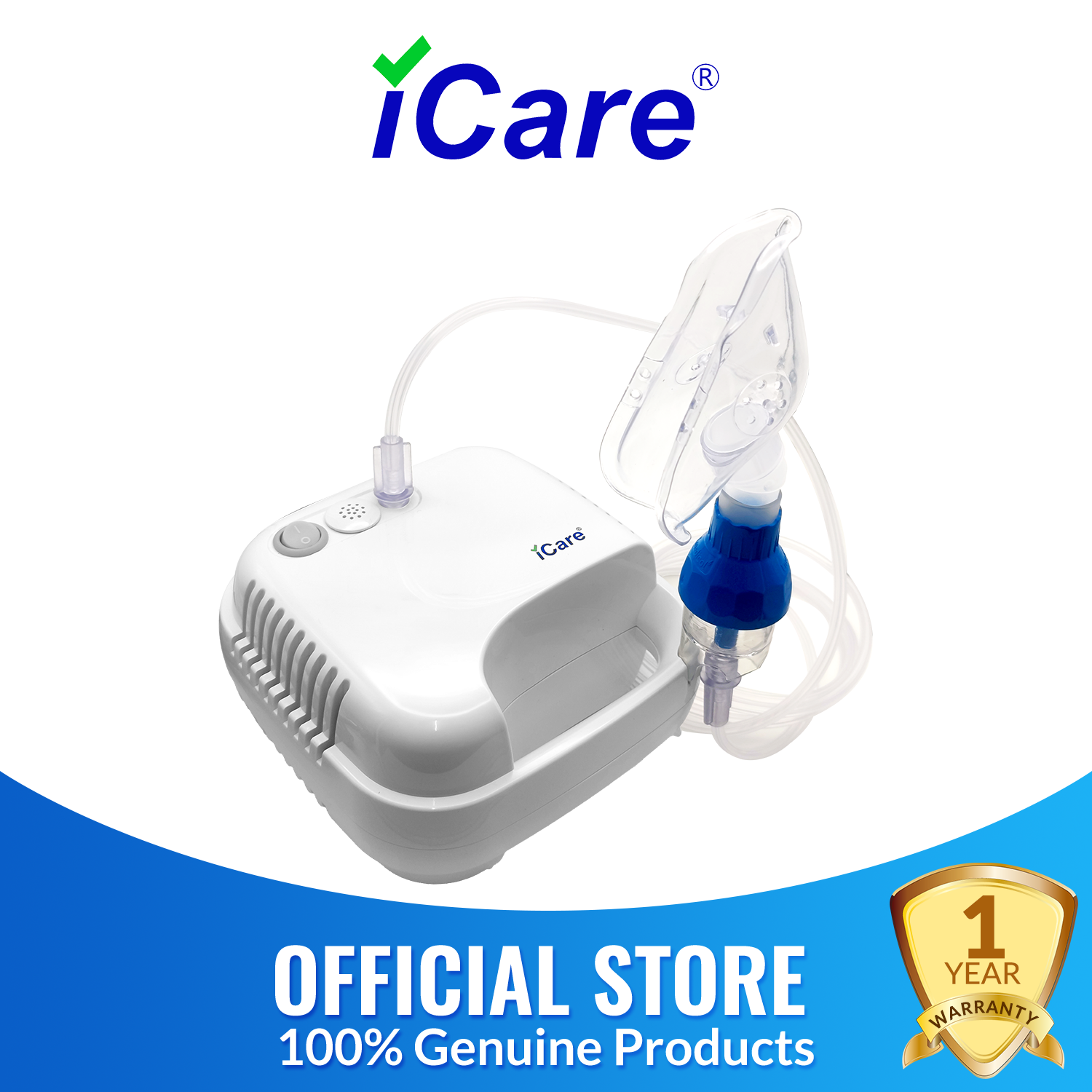

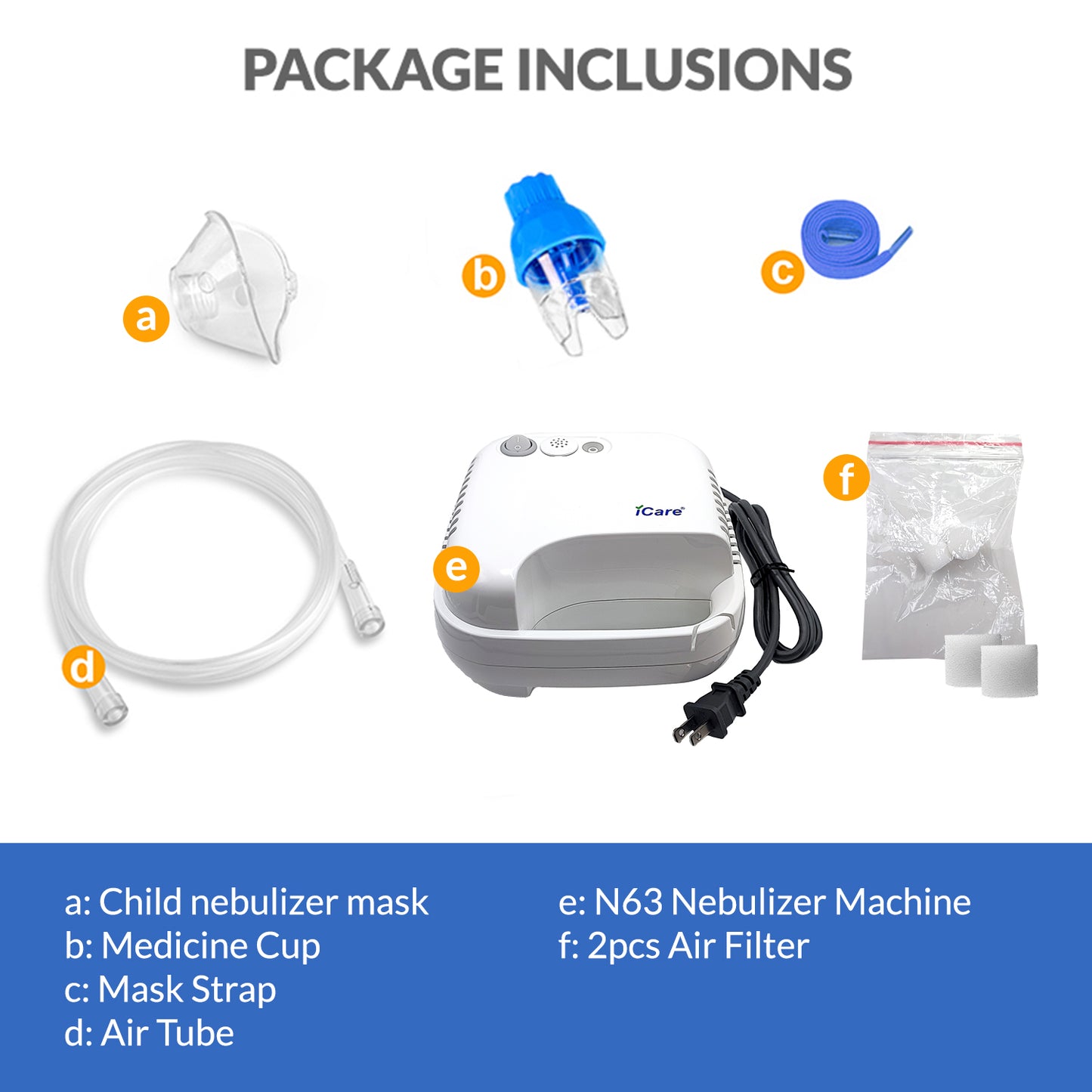

iCare N63 NebuLuxe Compressor Nebulizer with Choice of Mask Nebulizer Kit

Specification

Supply: AC220V±10% ~ 60Hz
Max nebulizing rate: ≥0.2mL/min
Max pressure of pump: ≥0.15MPa
Fuse tube: □T1.6AL 250V, Φ3.6×11
Flowrate of pump: ≥10L/min
Noise: ≤65dB(A)
Input power: ≤200VA
N.W.:≤1.5kg

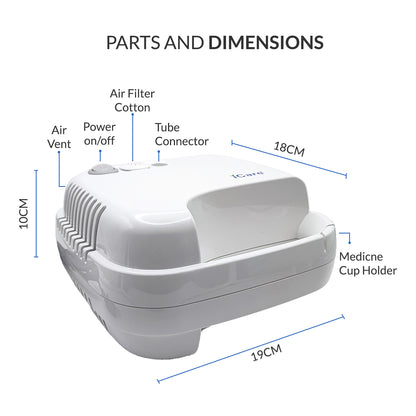

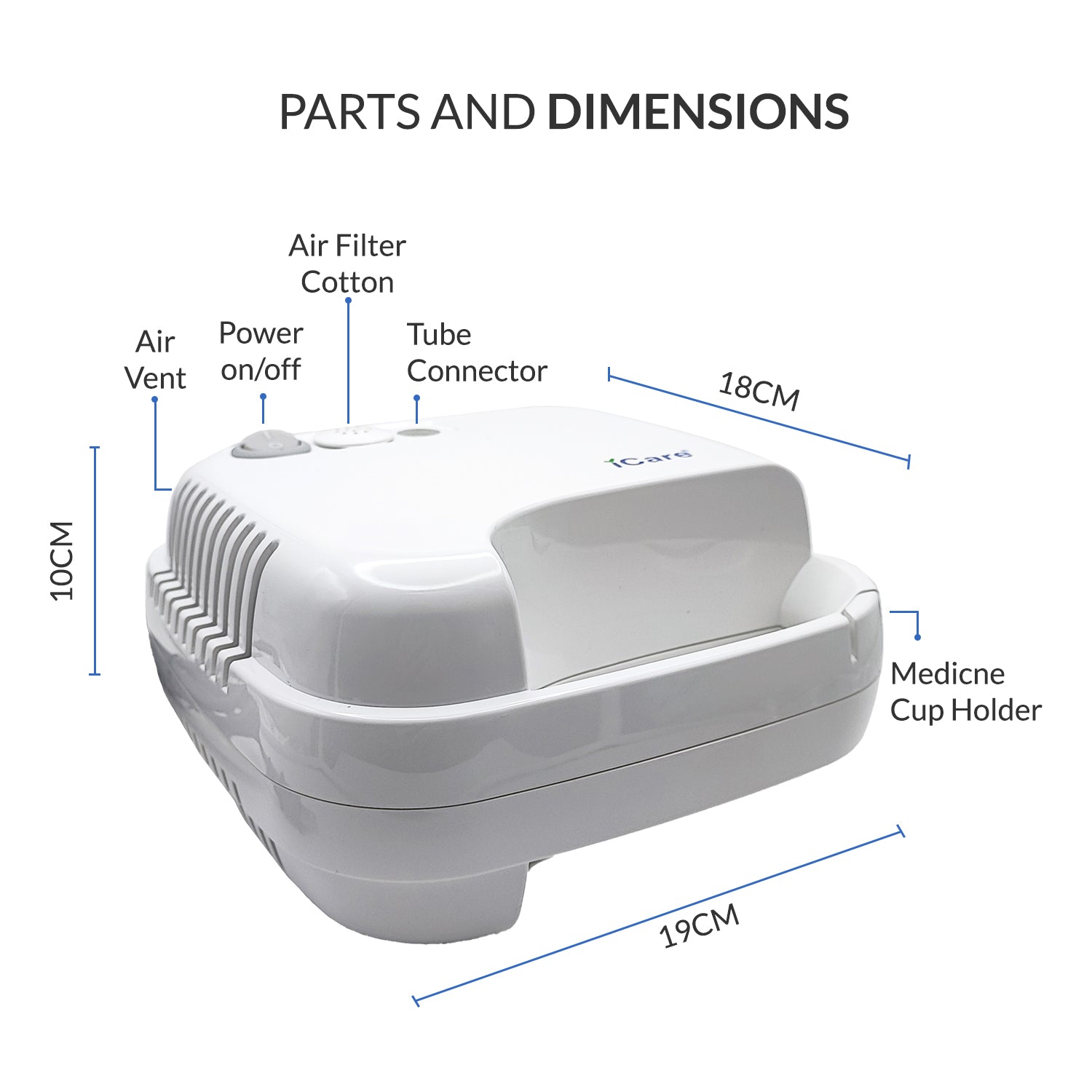

Dimension:17.5×17.5×11cm

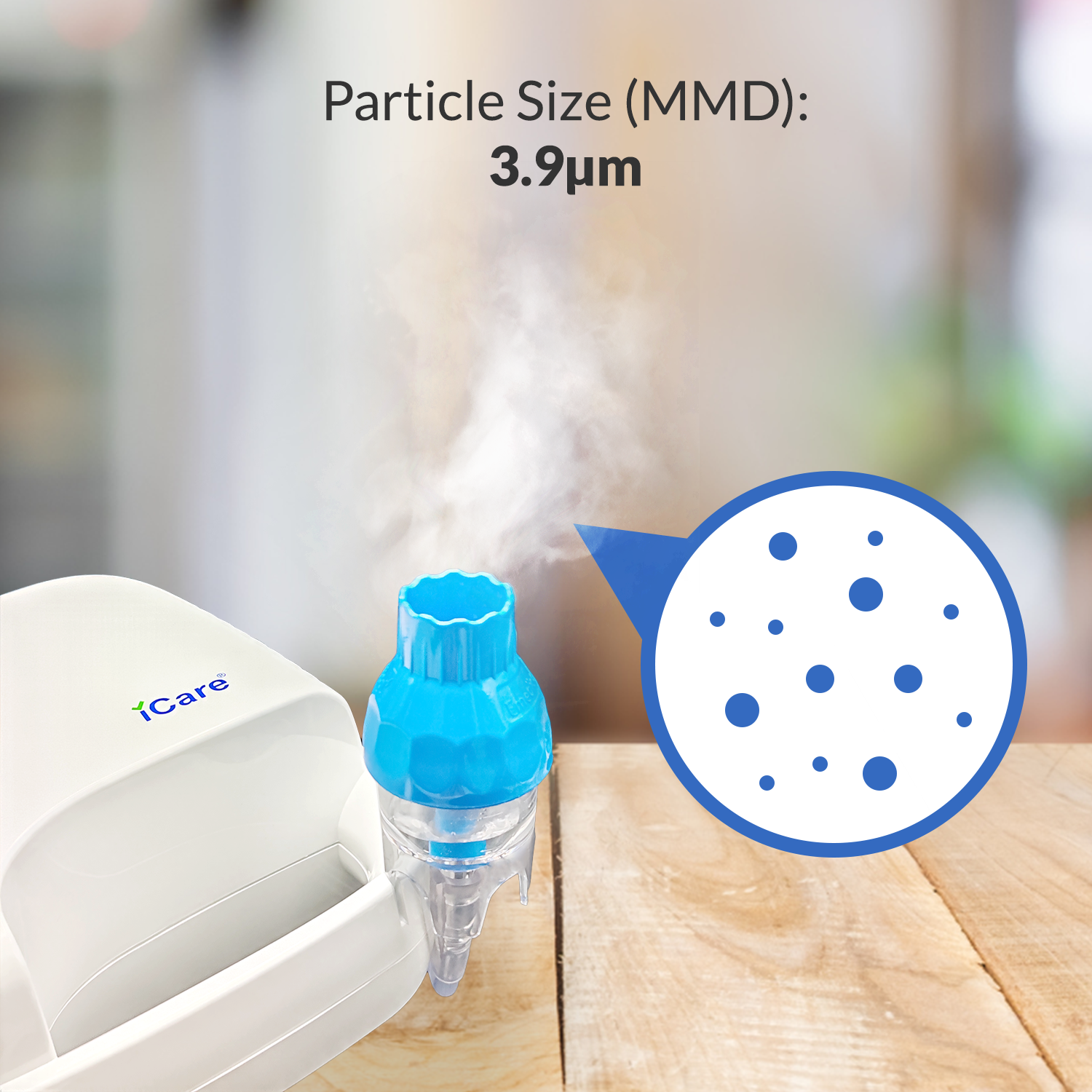

Mass median diameter(MMD): 3.9µm
Percent of MMD<5µm: >65%※

Test Condition: Temperature: 20℃, Relative humidity: 53%, Test distance: 10cm
away from atomizing outlet, Test solution: 0.9% physiological saline.(Test result
changes with different condition and solution.)

NOTE: When storage temperature is below 5℃, please keep the equipment in
normal working condition for at least 4 hours before using.
• Never operate the machine in flammable, explosive gas environment.
• Electric classification: Class Ⅱ, type BF application
• Normal operation conditions:
   Ambient temperature: 10℃~40℃
   Relative humidity: 30%~75%
   Atmospheric pressure: 86kPa~106kPa
Work system: Intermittent operation–working for 30 minutes with an interval of
30 minutes.

Method Of Adding Medicine And Installation Of Atomizer
1. Unscrew the cap of atomizing cup.
2. Add proper quantity of medicine into the atomizing cup, be careful not to exceed
the maximum water level.
3. Screw the cap of atomizing cup.
4. Connect the mouthpiece.
NOTE: Place the mouthpiece gently in mouth when treatment.

Operating Steps
1. Connect to the power supply.
2. Turn on the machine.
3. Connect the atomizing cup with the atomizing nozzle since the machine worked for
1~2minutes.
4. Do the treatment with nebulizer as the doctor's advice

After Use
• Remove the connecting tube and mouthpiece after turning off.
• Unscrew the cover of atomizing cup, pour out the remaining medicine liquid.
• Soak the connecting tube, mouthpiece, cover of atomizing cup and atomizing cup
into warm water for about 15 minutes or rinse them with pure water.
• Proper vinegar can be added into water.
NOTE: NEVER boil or wash these parts with boiling water in case of deformation.
Dry these parts completely before reinstallation.

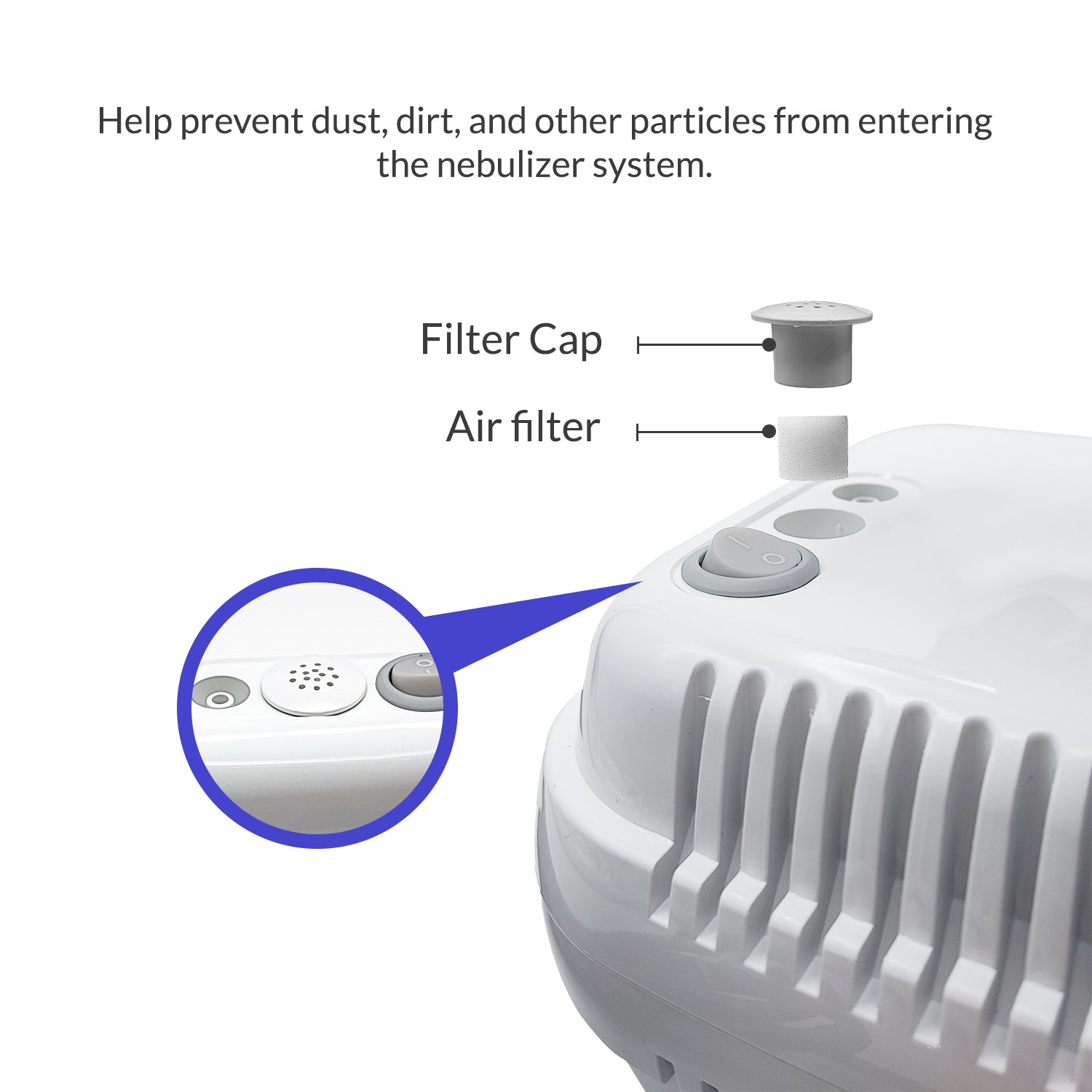

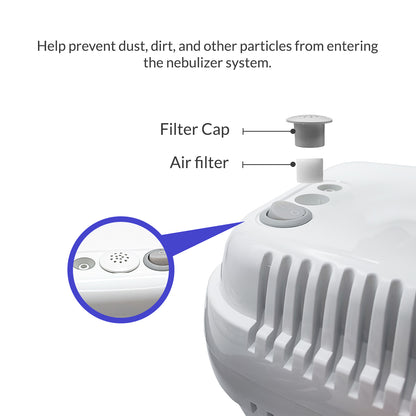

Replace The Filter
Replace the filter every three months. Dry it if found it is wet.
Take out the filter from the top of machine.

Maintenance
• Do not fold the connecting tubes when stored.
• Unplug the power plug if not use for a long time.
• It should be stored far away from children.
• Transportation and storage environment conditions:
   Ambient temperature: -40℃～+55℃
   Relative humidity: 10%～93%, no condensation
   Atmospheric pressure: 70kPa～106kPa
NOTE: Packaged products should be stored in well ventilated rooms without
corrosive gases
